Operations¶

Health¶

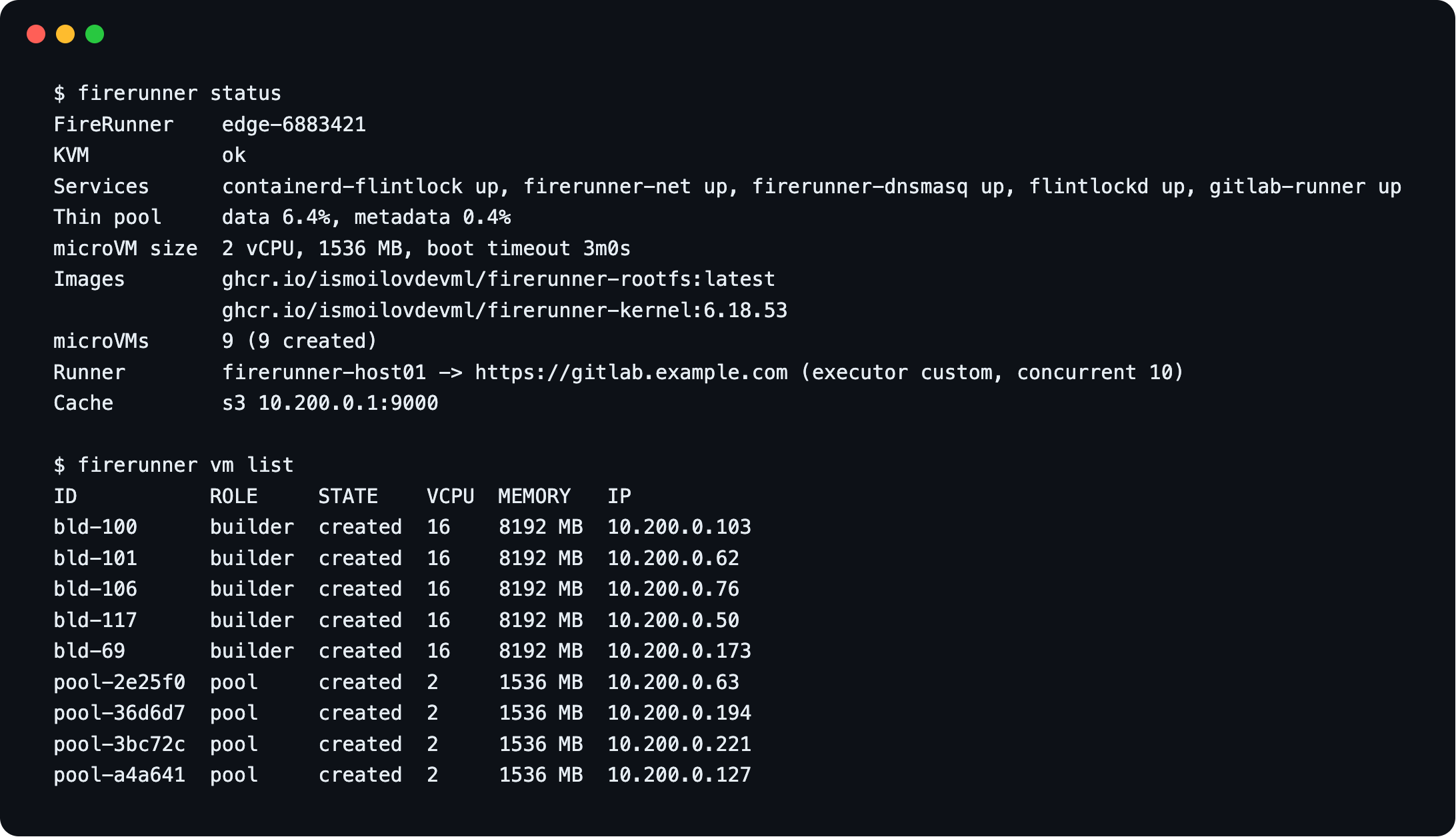

sudo firerunner status # one screen: services, disk, VMs, runner
sudo firerunner doctor # every check, with a hint when one fails
Upgrade¶
sudo firerunner upgrade # latest build of main (edge)
sudo firerunner upgrade --version v1.2.0
The release's checksums.txt must carry the release signature (Ed25519, key in
internal/upgrade/release-signing.pub), the binary must match its checksum and say it is the
version asked for; then it is replaced in place. v0.1.0 and v0.1.1 were published before releases
were signed: --allow-unsigned installs them. Running jobs, pre-booted VMs and builders keep
running. To upgrade the host stack (containerd, Firecracker, flintlock, gitlab-runner, network),
run the installer again.
v0.1.1 and older do not check signatures, so their firerunner upgrade does not either. For that
one upgrade, run the installer instead (FR_VERSION=<version>), which checks it.
After a new guest image is published, replace the idle VMs: sudo firerunner pool refresh.
To roll back, restore the previous binary and the config.yaml saved before the upgrade: an older
version refuses keys it does not know. v0.1.1 and older cannot talk to flintlockd over TLS: in
/etc/opt/flintlockd/config.yaml set insecure: true, delete the tls- lines and
systemctl restart flintlockd when no job runs.
The installer turns on mutual TLS for flintlockd's API in a run when no job runs: flintlockd
restarts with TLS, and firerunner gets the client certificate only once it could list the microVMs
with it; otherwise flintlockd goes back to no TLS. While jobs run it leaves TLS for a later run and
says so. sudo firerunner doctor warns while the API runs without TLS and when a certificate
(also the one flintlockd serves) expires within 90 days; a run of the installer renews them and
restarts flintlockd when no job runs.
microVMs¶
sudo firerunner vm list # role: job, pool, builder or run
sudo firerunner vm logs <id> # guest console, for boot problems (emptied past 64 MiB)
sudo firerunner vm rm <id>
sudo firerunner builder list
VMs that no job owns are deleted automatically every minute.
To drain a host, pause the runner in GitLab and wait until vm list shows no job VMs.
Rebuilding the thin pool¶
A thin pool keeps the chunk size it was created with. A new install uses 64K chunks (FR_THIN_CHUNK);
a pool from an older install keeps 512K until it is rebuilt. Check yours with
sudo lvs -o lv_name,chunk_size,zero flintlock/thinpool.
A rebuild deletes every microVM disk and the images flintlock pulled; the host pulls the kernel
and root filesystem again on the first boot. It keeps the registry mirrors, the cache: store and
the saved builder caches (/var/lib/firerunner, on the root disk). Running builders lose what they
cached since their last save. The host takes no jobs while it runs.
- Drain the host: pause the runner in GitLab and wait until
sudo firerunner vm listshows nojobVMs. - Stop taking jobs and refilling the pool, then delete the remaining microVMs. flintlockd deletes
in the background: repeat
vm listuntil it is empty.
sudo systemctl stop gitlab-runner firerunner
sudo firerunner vm rm --all
sudo firerunner vm list
- Stop the microVM stack and check that no Firecracker process is left:
sudo systemctl stop flintlockd containerd-flintlock
pgrep -x firecracker || echo "none left"
- Note the pool's disk, then remove containerd's thin devices, the volume group and the old state. containerd creates its devices with device-mapper directly, so LVM does not remove them:
sudo pvs -S vg_name=flintlock -o pv_name --noheadings # e.g. /dev/sdb
sudo dmsetup ls --target thin | awk '$1 ~ /^flintlock-thinpool-snap-/ {print $1}' |
xargs -r -n1 sudo dmsetup remove
sudo vgremove -y flintlock
sudo pvremove -y /dev/sdb && sudo wipefs -a /dev/sdb
sudo rm -rf /var/lib/containerd-flintlock /var/lib/flintlock /run/firerunner/pool.json
- Run the installer with that disk; it creates the pool and starts the stack again:
curl -sfL https://raw.githubusercontent.com/ismoilovdevml/firerunner/main/install.sh | sudo FR_DISK=/dev/sdb bash
- Check the new pool, start gitlab-runner and resume the runner in GitLab:
sudo lvs -o lv_name,chunk_size,zero flintlock/thinpool # 64.00k, zero
sudo systemctl start gitlab-runner
sudo firerunner doctor
A volume group on more than one disk is rebuilt on the first one; add the others afterwards with
vgextend flintlock /dev/sdX and grow the pool with lvextend -L +<size> flintlock/thinpool.
Monitoring¶
Prometheus metrics are on 127.0.0.1:9477/metrics. To scrape from elsewhere, install with
FR_METRICS_ALLOW=<prometheus-ip>/32.
Import the Grafana dashboard and the alert rules from
deploy/. Alerts page only for
failures FireRunner or the host caused, never for failing project scripts. Watch:
- FireRunner failure rate and System failures by reason.
- Cold boots: above 20 %, raise
pool.size(if memory allows). - Host resources used: the fullest host for thin pool, committed memory, DHCP leases and disk. A full thin pool or DHCP range stops every new microVM; full memory makes them wait.
- Committed microVM memory and Jobs that waited over 30 s for memory: jobs queue when memory is full.
- Docker layer cache row: builders against their slots, why builders were removed, and cache copies that fail or are skipped for lack of room.
- Disk free: the saved builder caches and flintlock's microVM state.
- Flintlock errors: failed flintlock calls by RPC and gRPC code.
- Speed: Warm builds and Builder boot (a build that finds its builder booting waits for it), Stage duration p95 by stage (which part of a job grew).
- Builder boot by phase (Docker layer cache row): which part of a builder boot builds wait
for.
admitis waiting for host memory,vmthe VM boot,save_waitthe previous builder's cache copy,restoreloading the saved cache (it grows with the cache size),buildkitdits start. The phases add up to the boot. One boot, failed ones too, is one log line with every phase's seconds and the total:journalctl -u firerunner | grep 'builder boot phases'. Itsresultisready,failed(failed_phasenames where; a daemon stop that cuts a phase short counts here) orabandoned(the builder was removed while it booted, or the daemon stopped after its last phase). - Node (node_exporter) row: the host under the microVMs. CPU steal (the hypervisor, on a
host that is itself a VM), IO wait and Pressure stall show a saturated host before jobs
fail. It needs node_exporter on the host, with the same
instancelabel in both scrape jobs (relabel both to the host name): the Node exporter variable follows the selected hosts.
The daemon logs one line per job (journalctl -u firerunner | grep '"job":"<id>"').
Logs: journalctl -u firerunner -u flintlockd -u gitlab-runner.
Alerts¶
Each rule in deploy/prometheus/firerunner-alerts.yml links to its section here. Names in
italics are panels of the Grafana dashboard.
FireRunnerDaemonUnhealthy¶
Critical. The daemon is not scraped, or its main loop has not passed for 2 minutes. Jobs still run, but every one cold-boots, nothing is cleaned up and the other FireRunner alerts are blind.
- Check:
journalctl -u firerunner -n 200. Before restarting, check what the loop may wait on, which a restart does not fix:systemctl status flintlockdandsudo timeout 10 lvs flintlock/thinpool(a hang means LVM or the disk is stuck). - Fix:
sudo systemctl restart firerunner. - Recovered:
curl -s 127.0.0.1:9477/healthzon the host printsok.
FireRunnerFlintlockDown¶
Critical. The daemon has not reached the flintlock API for 3 minutes: no microVM can be created and every new job fails in prepare.
- Check:
systemctl status flintlockd containerd-flintlock,journalctl -u flintlockd -n 100,sudo firerunner doctor. flintlockd needscontainerd-flintlock. - Recovered: Flintlock API is up and the next job gets a microVM.
FireRunnerServiceDown¶
Critical. flintlockd, containerd-flintlock, firerunner-net, firerunner-dnsmasq or
gitlab-runner has been inactive for 3 minutes: jobs fail (no microVM, network or DHCP) or are not
taken from GitLab.
- Check:
journalctl -u <service> -n 100,sudo firerunner doctor. - Fix:
sudo systemctl start <service>. Never restartfirerunner-netwhile jobs run: stopping it removes the bridge; its rules reload withsystemctl reload firerunner-net. - Recovered: Services shows it up.
FireRunnerCacheServiceDown¶
Warning. firerunner-registry (the Docker Hub mirror) or firerunner-cache (cache: storage) has
been down for 10 minutes. Jobs still run, but pull from Docker Hub directly (rate limits) or start
without their cache:.
- Check:
journalctl -u <service> -n 100,df -h /var/lib/firerunner. - Fix:
sudo systemctl start <service>. - Recovered: Services shows it up.
FireRunnerSystemFailures¶
Critical. In 30 minutes at least 3 jobs, and over 5 % of all jobs, failed because of FireRunner or the host. Failing project scripts and cancelled jobs do not count.
- Check the
reasonin System failures by reason:ssh_losta microVM died, usually a host OOM kill (see FireRunnerHostOOMKill);vm_bootDHCP or the guest boot (firerunner vm logs <id>);flintlock_errorflintlockd or the thin pool;admission_timeoutno host memory (or a busy admission lock) withinvm.boot_timeout;services,docker_auth,helper_stagethe job log says which step. Per job:journalctl -u firerunner | grep '"result":"system_failure"'. - Recovered: the alert resolves once fewer than 3 such failures are left in the last 30 minutes.
FireRunnerJobsWaitForMemory¶
Warning. In 30 minutes at least 3 jobs, and over 10 % of prepared jobs, waited more than 30 s for host memory before their microVM was created.
- Check Committed microVM memory by role: more
jobmemory than the running jobs need means leaked VMs (firerunner vm list); a largebuildershare meansbuilder.maxorbuilder.memory_mbis too high. - Fix: otherwise lower
concurrentorpool.size, or add memory. - Recovered: Jobs that waited over 30 s for memory stays at 0.
FireRunnerHostOOMKill¶
Warning. The kernel OOM-killed a process in the last 10 minutes, usually a firecracker microVM:
its job failed with ssh_lost, or its builder died.
- Check what was killed and how large it was:
journalctl -k --since -15min | grep -iE 'out of memory|killed process'. - Fix: admission keeps microVM memory below MemTotal minus
vm.host_reserve_mb, so the host needed more than that reserve: raise it (sudo firerunner config set vm.host_reserve_mb <MB>), or lowerconcurrent,pool.sizeorbuilder.max. - Recovered: no new kill; the alert resolves 10 minutes after the last one.
FireRunnerThinPoolFull¶
Warning. The devmapper thin pool that holds every microVM disk was over 85 % (data) or 75 %
(metadata) full at a reading in the last 15 minutes. From 95 % data or 90 % metadata no new
microVM starts (jobs, pool VMs and builders wait for room, then fail as admission_timeout):
running microVMs keep writing to their disks, and at 100 % every one of them fails; full metadata
can damage the pool.
- Check:
sudo lvs flintlock;firerunner vm listfor VMs that should be gone. - Fix now:
sudo firerunner builder rm --allfrees the builder VMs' disks, but also deletes every project's saved layer cache, so every next build is cold. - Fix for good: more space in the volume group (
vgextend flintlock <disk>), thenlvextend -l +100%FREE flintlock/thinpoolfor data orlvextend --poolmetadatasize +<size> flintlock/thinpoolfor metadata. - Recovered: Thin pool usage is below the threshold; the alert resolves 15 minutes later.
FireRunnerThinPoolUnknown¶
Warning. The daemon runs, but has not read the thin pool usage for 25 minutes, so FireRunnerThinPoolFull cannot fire.
- Check on the host:
sudo timeout 10 lvs flintlock/thinpool. An error or a hang means LVM or the disk is in trouble (dmesg -T | tail -50). The daemon logs its ownlvserror:journalctl -u firerunner | grep 'thin pool usage'. - Recovered: Thin pool usage shows data again.
FireRunnerDHCPLeasesExhausting¶
Critical. Over 80 % of the microVM DHCP range has been leased for 5 minutes. At 100 % new microVMs
get no address and jobs fail with got no DHCP lease.
- Check DHCP leases: mostly
livemeans that many microVMs exist (lowerconcurrentorpool.size); mostlystalemeans leases of deleted VMs are not released: installdnsmasq-utils(dhcp_release) and checkjournalctl -u firerunner | grep 'delete failed'. - Recovered: Host resources used shows DHCP leases below 80 %.
FireRunnerDiskFilling¶
Warning. The file system of /var/lib/firerunner/builder-cache or /var/lib/flintlock/vm has had
less than 15 % free for 15 minutes. Below 10 % no builder cache is saved; at 0 the registry mirror,
cache: uploads and flintlockd's microVM state can no longer be written.
- Check:
df -h /var/lib/firerunner /var/lib/flintlock/vm;sudo du -xsh /var/lib/firerunner/* /var/lib/flintlock/vm. - Fix:
cache:archives: run the installer again with a lowerFR_CACHE_DAYS. Saved builder caches: lowerbuilder.saved_cache_gb(applies at the next save);sudo firerunner builder rm --alldeletes every project's saved cache at once, so every next build is cold. - Recovered: Disk free is above 15 % of the file system.
FireRunnerBuildersFailing¶
Warning. In the last hour at least 3 builders failed to boot, stopped answering or lost their VM.
Those projects' docker build runs without the layer cache, or fails when its builder dies.
- Check:
journalctl -u firerunner --since -1h | grep -E 'builder boot failed|builder: (not answering|VM gone)'. - Fix:
no host memory for a buildermeans builders do not fit next to the jobs: lowerbuilder.maxorbuilder.memory_mb. Not answering or VM gone: usually BuildKit ran out of memory in the builder: raisebuilder.memory_mbor lowerbuilder.max. - Recovered: Builder removals by reason shows no
not_answeringorvm_gone; the alert resolves an hour after the last one.
Services¶
| Unit | Role |
|---|---|
firerunner |
daemon: pool, builders, cleanup, metrics |
flintlockd, containerd-flintlock |
start and stop microVMs; store their images |
firerunner-net, firerunner-dnsmasq |
microVM network, DHCP and DNS |
firerunner-registry |
registry mirrors for the VMs (Docker Hub and FR_REGISTRY_MIRRORS) |
firerunner-cache |
storage for cache: |
gitlab-runner |
takes jobs from GitLab |
Back up /etc/firerunner, /etc/opt/flintlockd and /etc/gitlab-runner/config.toml. Everything
else can be rebuilt.
Troubleshooting¶
Start with sudo firerunner doctor. For an alert, see its section under Alerts.
| Symptom | Fix |
|---|---|
installer: /dev/kvm not found |
turn on virtualization or nested virtualization |
installer: no blank disk found |
attach an empty disk or set FR_DISK |
| jobs stay pending | the job needs tags: [firecracker]; check the runner is online in GitLab |
got no DHCP lease |
systemctl status firerunner-net firerunner-dnsmasq; then firerunner vm logs <id> |
waiting for host memory for long |
fewer parallel jobs, a smaller pool.size, or more RAM; firerunner_memory_committed_bytes shows who holds it |
| firewall rules need re-applying | systemctl reload firerunner-net; never restart it while jobs run, stopping it removes the bridge |
| jobs cannot reach an internal host | its network overlaps 10.200.0.0/24 or the VM Docker ranges; change FR_SUBNET or vm.docker_bip |
